Modular Firefighting Equipment Container
Modern fire response and rescue operations demand speed, organization, and durability. Developed with these needs in mind, the Modular Firefighting Equipment Container offers a portable solution that ensures maximum efficiency in the field.

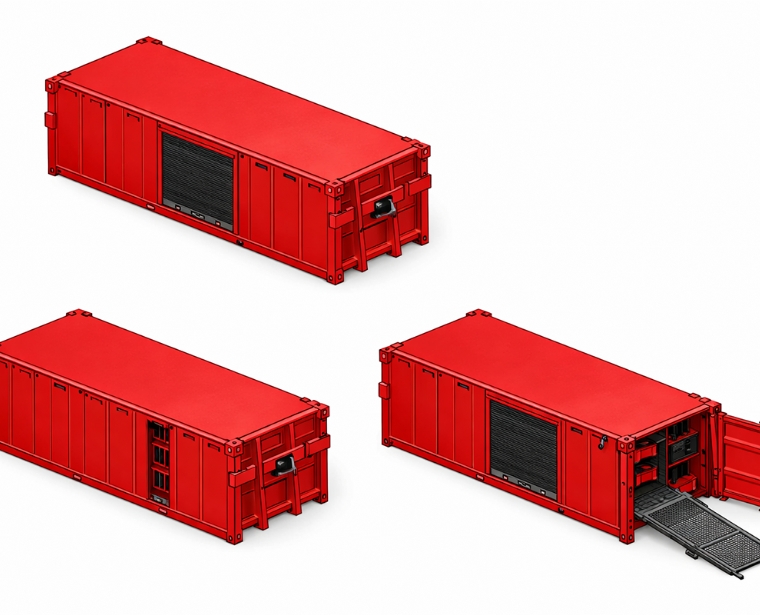

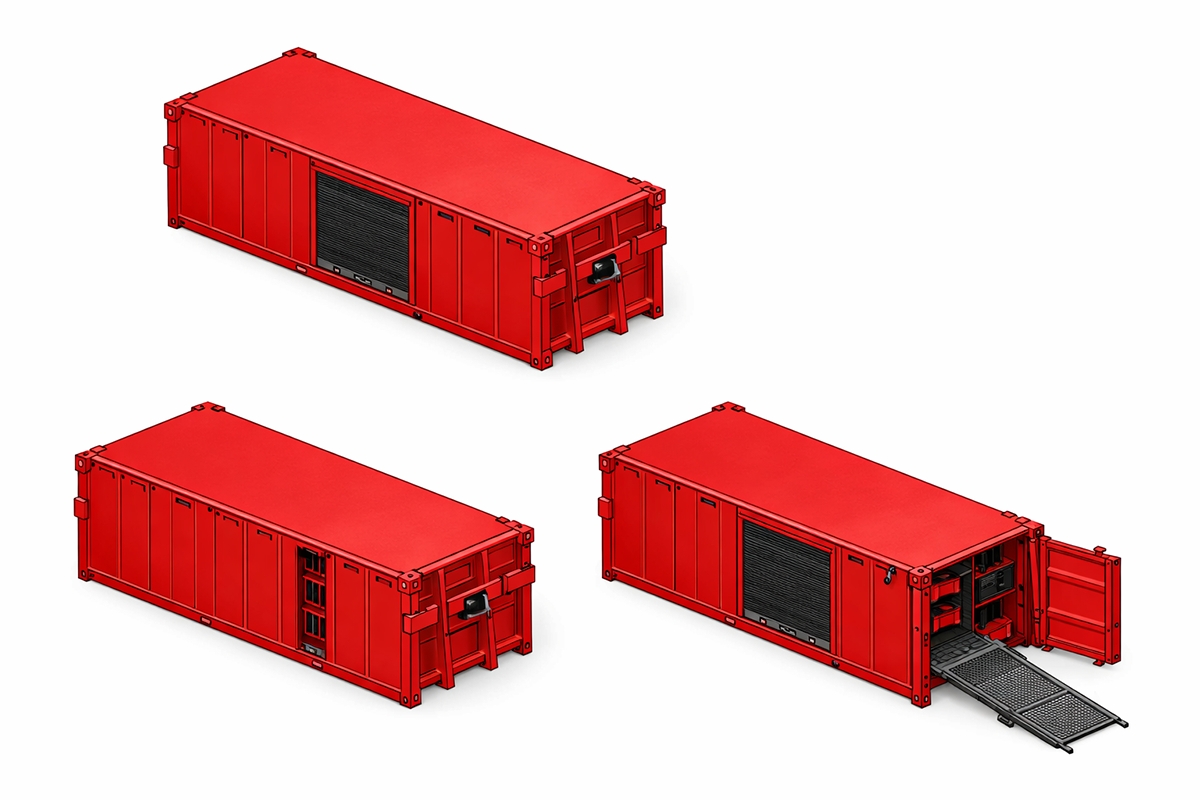

Structural Specifications
- Dimensions: 6 m (L) × 2.4 m (W) × 2.4 m (H)
- Transport System: Hook-lift truck connection compliant with DIN 30722 standards.
- Material: S355 structural steel chassis, 3 mm exterior sheeting, epoxy primer + RAL 3000 fire red finish.
- Shutter System: A total of 6 aluminum roll-up shutters (3 on the right, 3 on the left).
- Flooring:Phenolic plywood + anti-slip aluminum checkered plate.

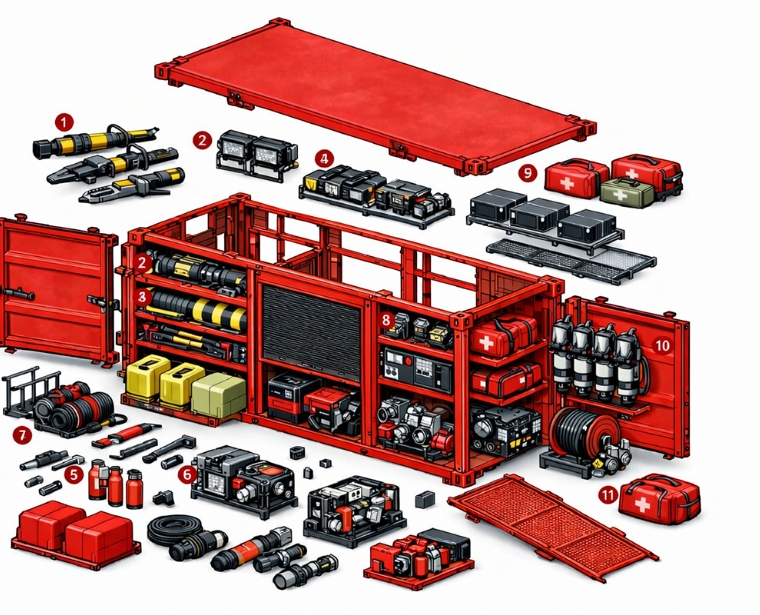

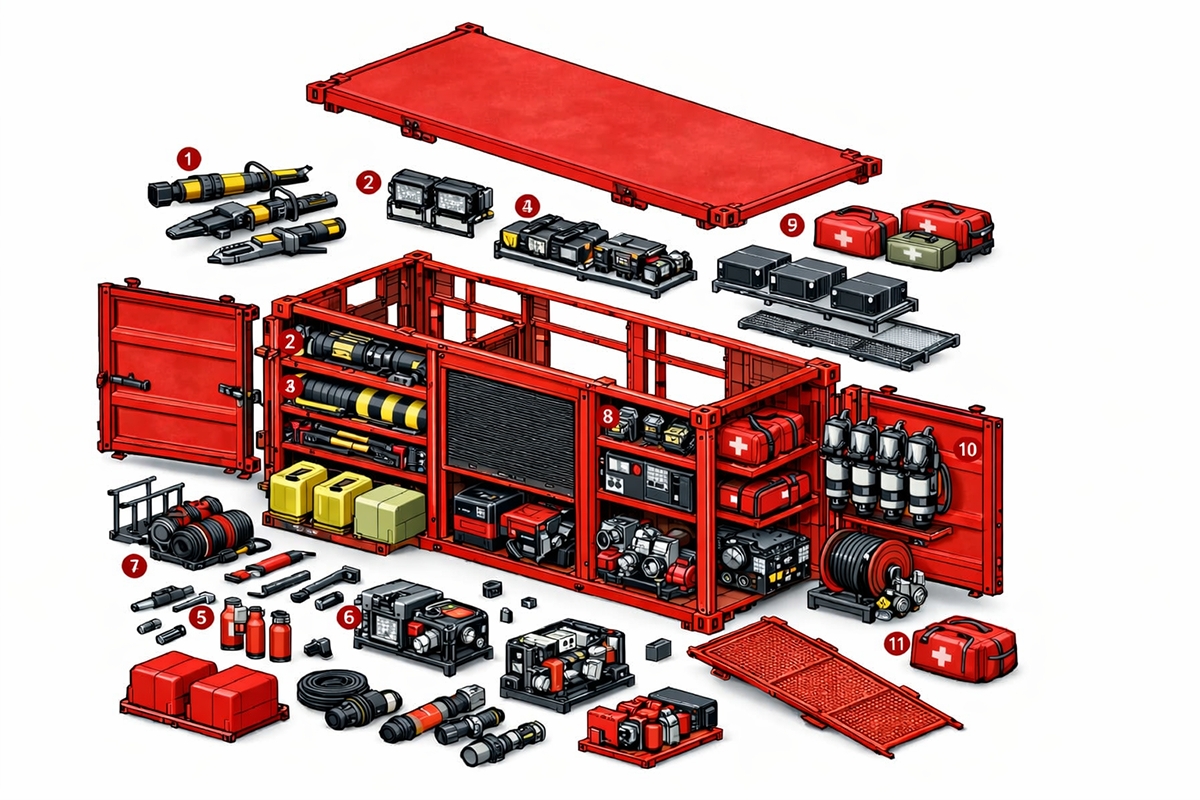

Internal Layout and Equipment

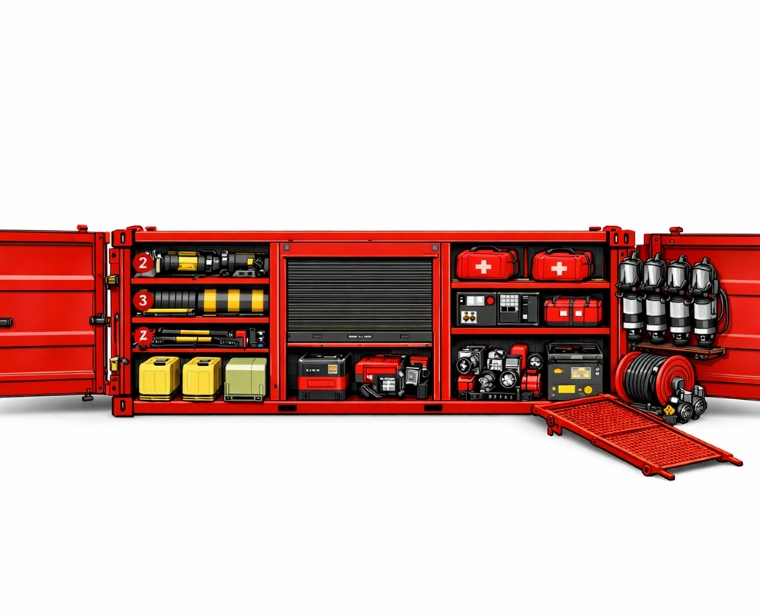

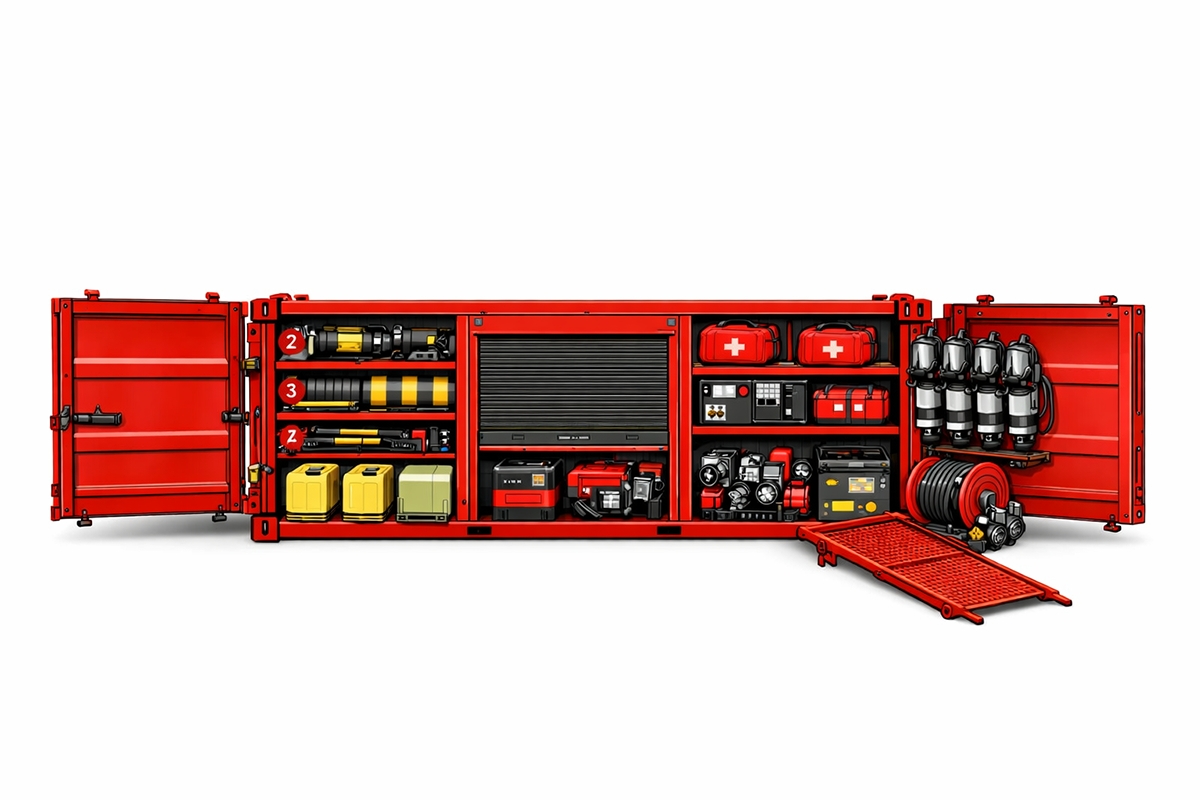

The interior of the container is divided into three main sections for operational speed and ease of access:
- Left Section: Hydraulic rescue tools, lifting bags, hand tools, and fuel canisters.
- Center Section: Electrical control panel, generator, pump unit, and lighting equipment.
- Right Section: Triage and first aid kits, SCBA (Self-Contained Breathing Apparatus) cylinders, hose reels, and medical bags.
Each piece of equipment is placed in a numbered shelving system, facilitating easy maintenance and inventory control.
Electrical and Lighting System
- 220V external power inlet.
- IP68 LED bar lighting (both peripheral and interior).
- 24V DC converter and battery group.
This system ensures high visibility and a safe working environment during night operations.
Portability and Applications

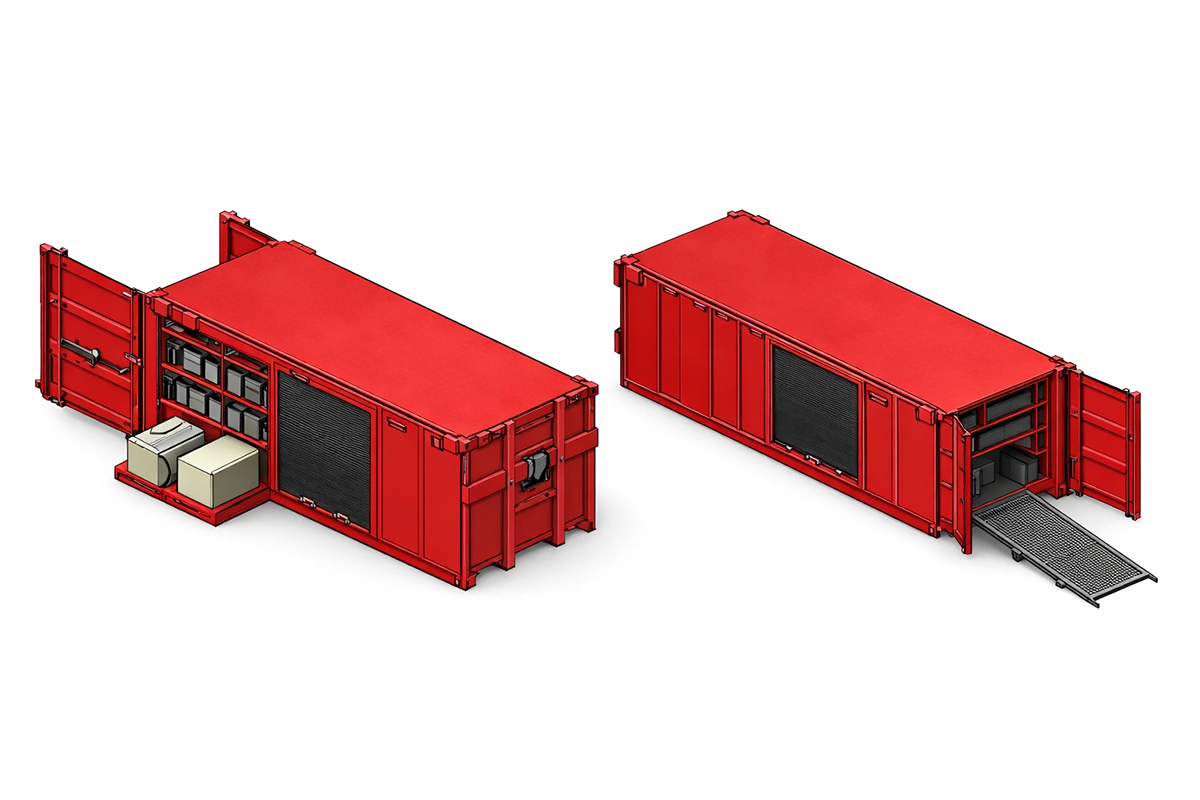

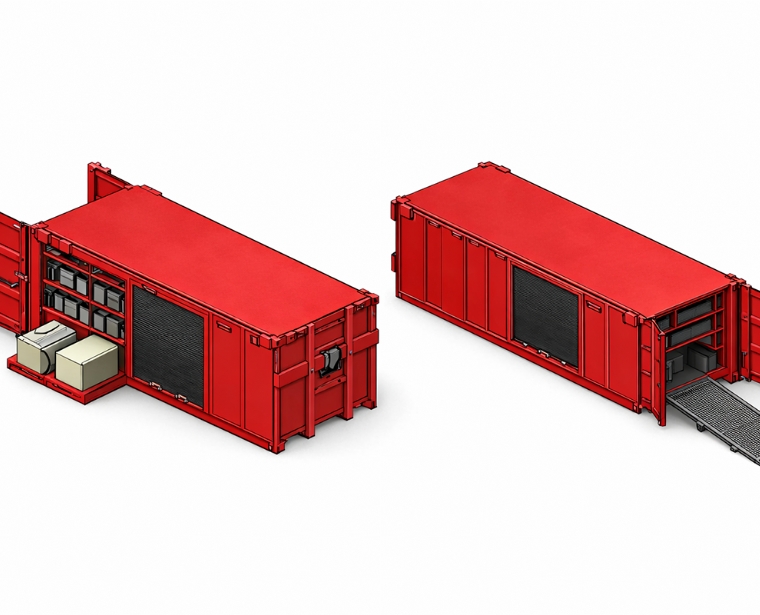

The container can be easily transported by hook-lift trucks. Thanks to the ramp entry system, vehicle-mounted equipment or mobile trolleys can be quickly loaded into the container.
Areas of Use:
- Fire and rescue stations.
- Industrial facility emergency response units.
- Disaster and field operation centers.
Advantages
- Adaptable: Modular structure allows customization for different mission profiles.
- Efficient: Rapid deployment and easy maintenance.
- Durable: Professional corporate appearance with high-strength construction.
- Compliant: Full compatibility with international transport standards.
